Bambu Lab 4-in-1 PTFE Adapter – H2C
€12.99 Inc. VAT
The 4-in-1 PTFE Adapter allows the printer to connect up to four filament input modules simultaneously, enabling multi-color printing with up to seven filaments. It also supports the use of both the AMS and filaments that are not compatible with the AMS, such as TPU95A, Ta Zhu PET-CF, and other carbon- or glass-fiber reinforced filaments.
Compatibility: H2C and H2C Laser
6 in stock
Installation
Learn more about the replacement of Bambu 4-in-1 PTFE Adapter on Bambu Lab Wiki.
In the Box
- Bambu 4-in-1 PTFE Adapter (x1)
- Bambu 4-in-1 PTFE Adapter Filament II Cleaning Pad (x5)
Instructions for use

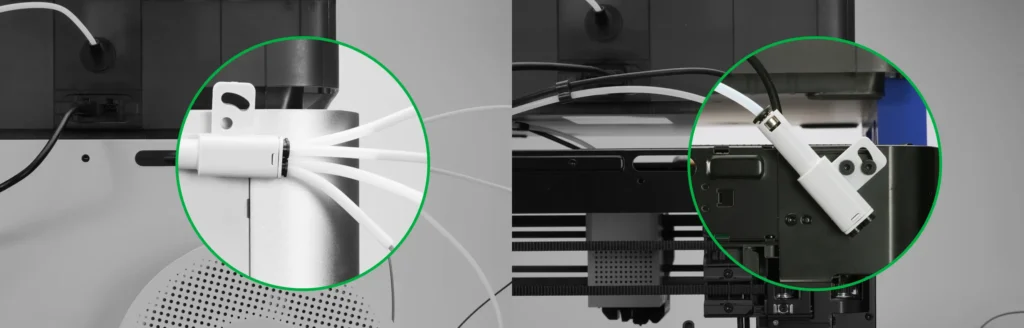

The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.
1. When using AMS:
– Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
– Connect the PTFE tube from the buffer output to one of its IN ends. – Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
2. When the AMS is not being used:
– Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
– Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.
