Bambu Lab 4-in-1 PTFE Adapter
€8.99 Inc. VAT
The Bambu 4-in-1 PTFE Adapter is an adapter used to connect the PTFE tube. Compared to the original PTFE tube connector, the 4-in-1 adapter can connect 4 feeder modules to the printer at the same time. (up to 7 different filaments: 1 AMS and other 3 filaments)
Compatibility: X1 Series and P1 Series
3 in stock
It enables seamless integration with AMS while supporting filaments that are not AMS-compatible, such as TPU 95A, Bambu PET-CF, and third-party filaments containing carbon fiber or glass fiber.
Installation
Learn more about the replacement of Bambu 4-in-1 PTFE Adapter on Bambu Lab Wiki.
In the Box
Bambu 4-in-1 PTFE Adapter *1
Instructions for use

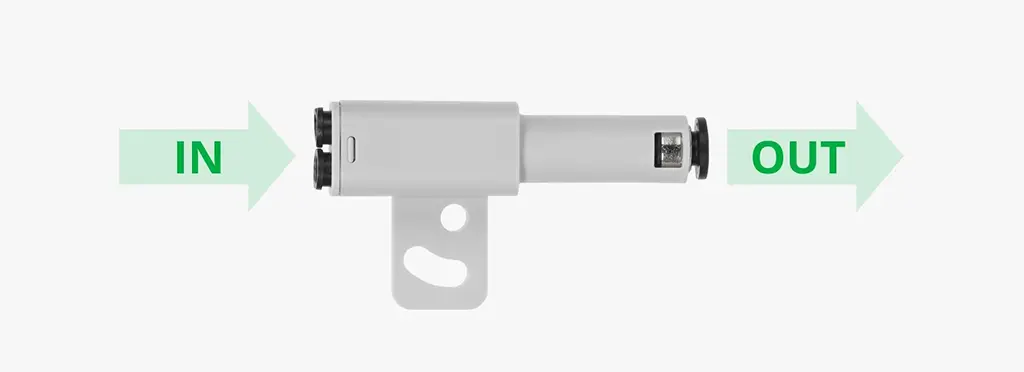

The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.

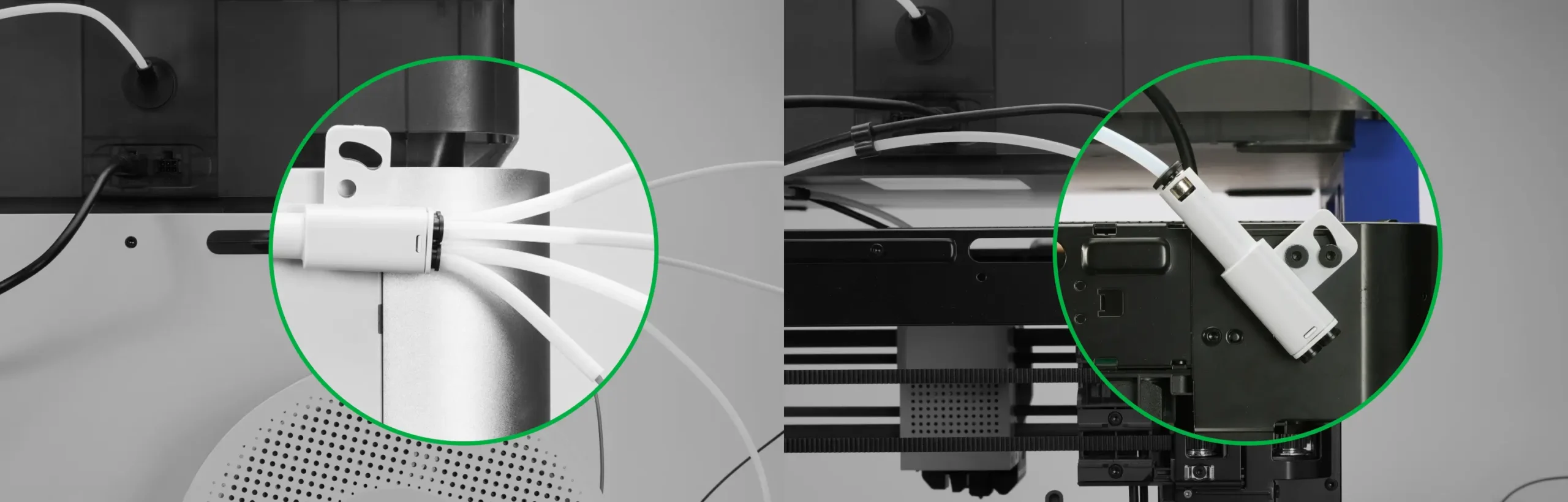

1. When using AMS:
– Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
– Connect the PTFE tube from the buffer output to one of its IN ends. – Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
2. When the AMS is not being used:
– Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
– Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.
