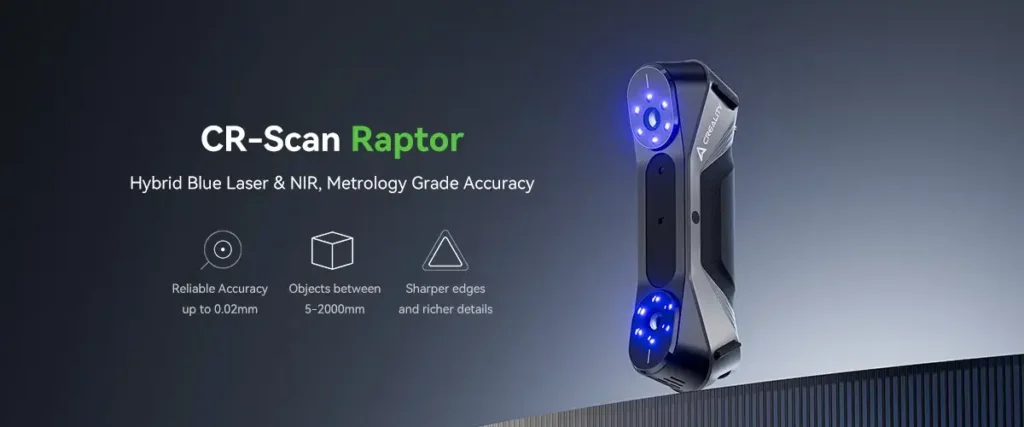

Creality CR-Scan Raptor 3D Scanner

1,599.00 Inc. VAT

The CR-Scan Raptor features a unique blend of blue laser and infrared light sources, allowing it to scan objects of various sizes, from small to large, and cater to a wide range of industrial 3D scanning applications.

Features & Advantages
⋅ 7 Blue Parallel Laser Lines
⋅ Metrology Grade Accuracy, up to 0.02mm

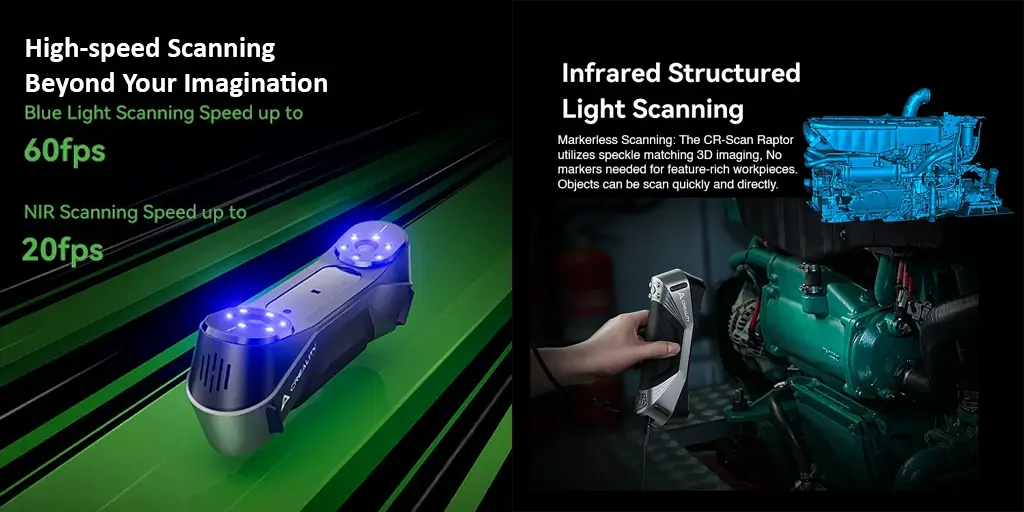

⋅ Scanning Speed up to 60fps
⋅ Objects between 5-2000mm
⋅ Anti-shaking for Smooth Scanning
⋅ Scan Black/Metal Objects Without Sprays
⋅ 24-Bit Full-Color Scanning
⋅ Light and Compact, 372g

Available on backorder

SKU: CR-SCANRAPTOR Category:

Anti-shaking for smooth scanning

Equipped with One-Shot 3D imaging technology, the CR-Scan Raptor is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.

Scan Black/Metal Objects without Sprays

Even without scanning spray, you can scan cars, car parts, tires, and other black/metal objects to get the desired model effect.

Versatile Scanning for All Sizes

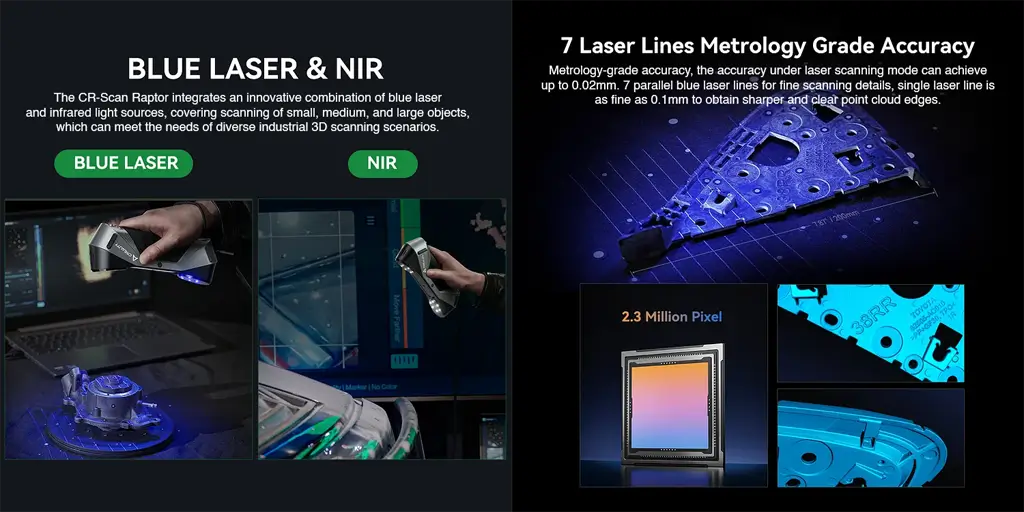

Combining line lasers with infrared structured light, the CR-Scan Raptor can scan objects ranging in size from 5*5*5 mm³-2000*2000*2000 mm³. Effortlessly scanning small figurines, bolts, faces, human bodies, automobile components, and more.

24-bit Full-Color Scanning

Equipped with 12 circular LED texture lights, it can enhance the brightness of color mapping in dark environments and truly present the color of objects.

Intuitive Experience

Ring indicator light, providing real-time scanning status feedback; Paired with buttons, it offers comfortable and straightforward operation.

Peaceful Scanning in Various Environments

Dual-color circular LED texture lights can help achieve more realistic scanning results.

>>Blue Light(Blue 7-line laser)

Accuracy: Up to 0.02mm @ 100mm [1]
3D Resolution: 0.02-2mm
Scanning Speed: Up to 60fps
Min. scanvolume: 5mm x 5mm x 5mm
Single Capture Range: 270mmx170mm@300mm
Working distance: 150mm-400mm
Color Mapping: Yes
Alignment mode: Marker

>>NIR(infrared binocular structured light)

Accuracy: Up to 0.1mm
3D Resolution: 0.1-2mm
Scanning Speed: Up to 20fps
Single Capture Range: 930mmx580mm@1000mm
Working distance: 170mm-1000mm
Color Mapping: Yes
Alignment mode: Marker / geometry / texture

General Parameters

3D imaging camera resolution: 1920×1200
Color Supplemental Light: 12 white LEDs
Marker Recognition Enhancement: 12 infrared LEDs
Laser Safety: Class I (eye safe)
Button: Mechanical
IMU: Yes
Output format: OBJ/STL/PLY
Input Power: 12V 2A
Data interface: TypeC/USB3.0
Device Dimensions: 215mmx50mmx74mm
Device Weight: 372g

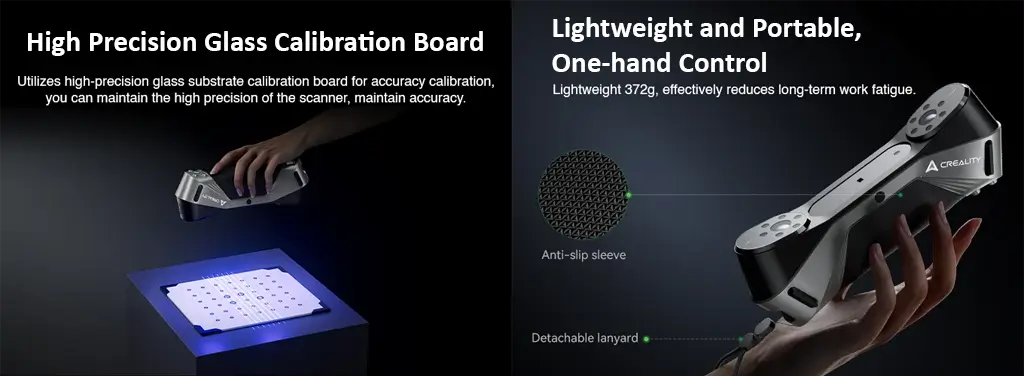

Calibration board: High-precision glass calibration board
Wireless Scanning: Supported in conjunction with future wireless scanning accessories
System Support: Windows/macOS
Operating temperature: -10°C to 40°C
Operating humidity: 0-90%RH

Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
